1.starUML建立类图

Xiaoxiao Lv4
  2024-04-10 15:08:35 2024-04-10 15:08:35 Created   2024-12-07 07:30:36 2024-12-07 07:30:36 Updated    94 Words  1 Mins

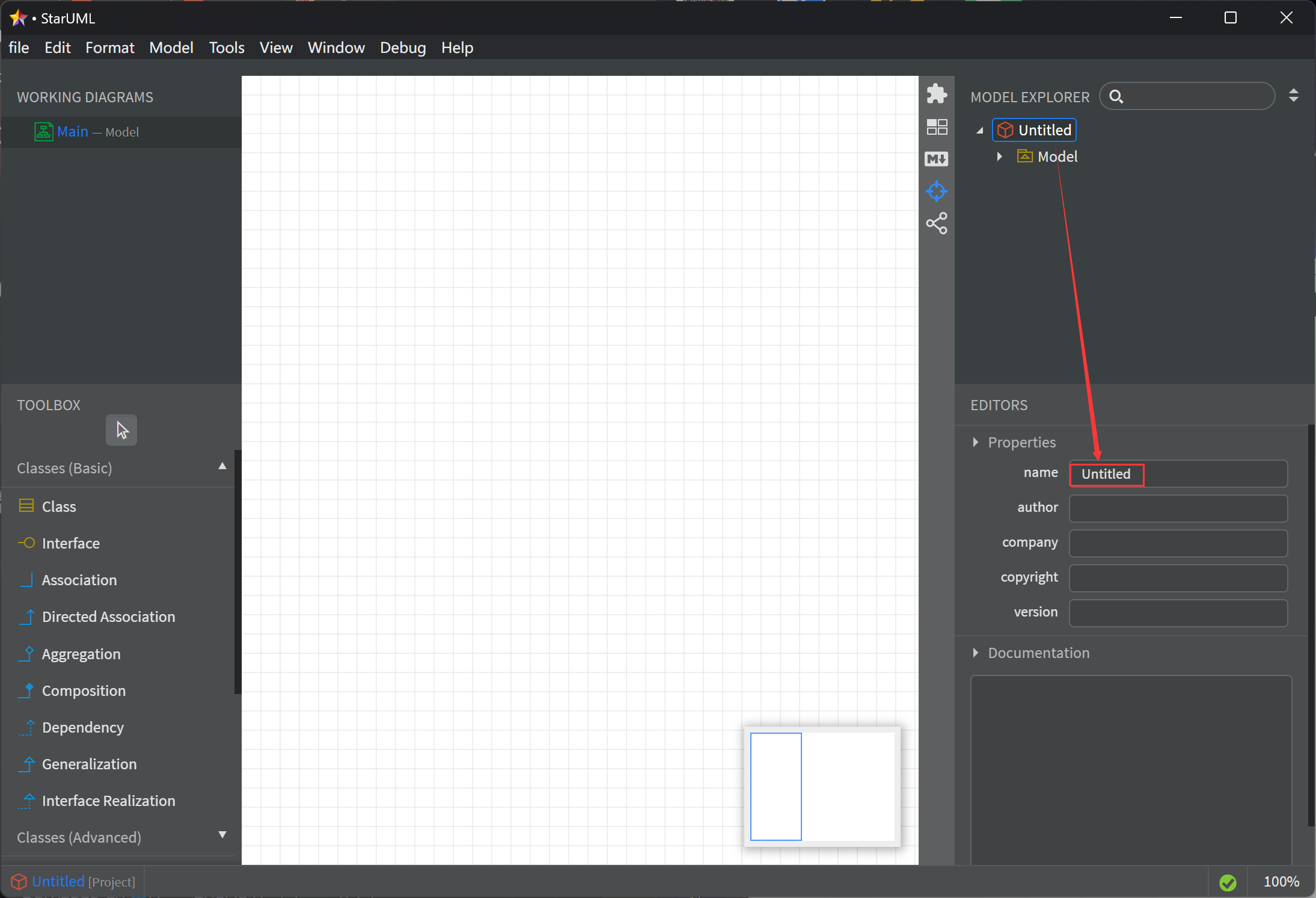

  1. 打开starUML，双击Untitled修改名字。

    uml14

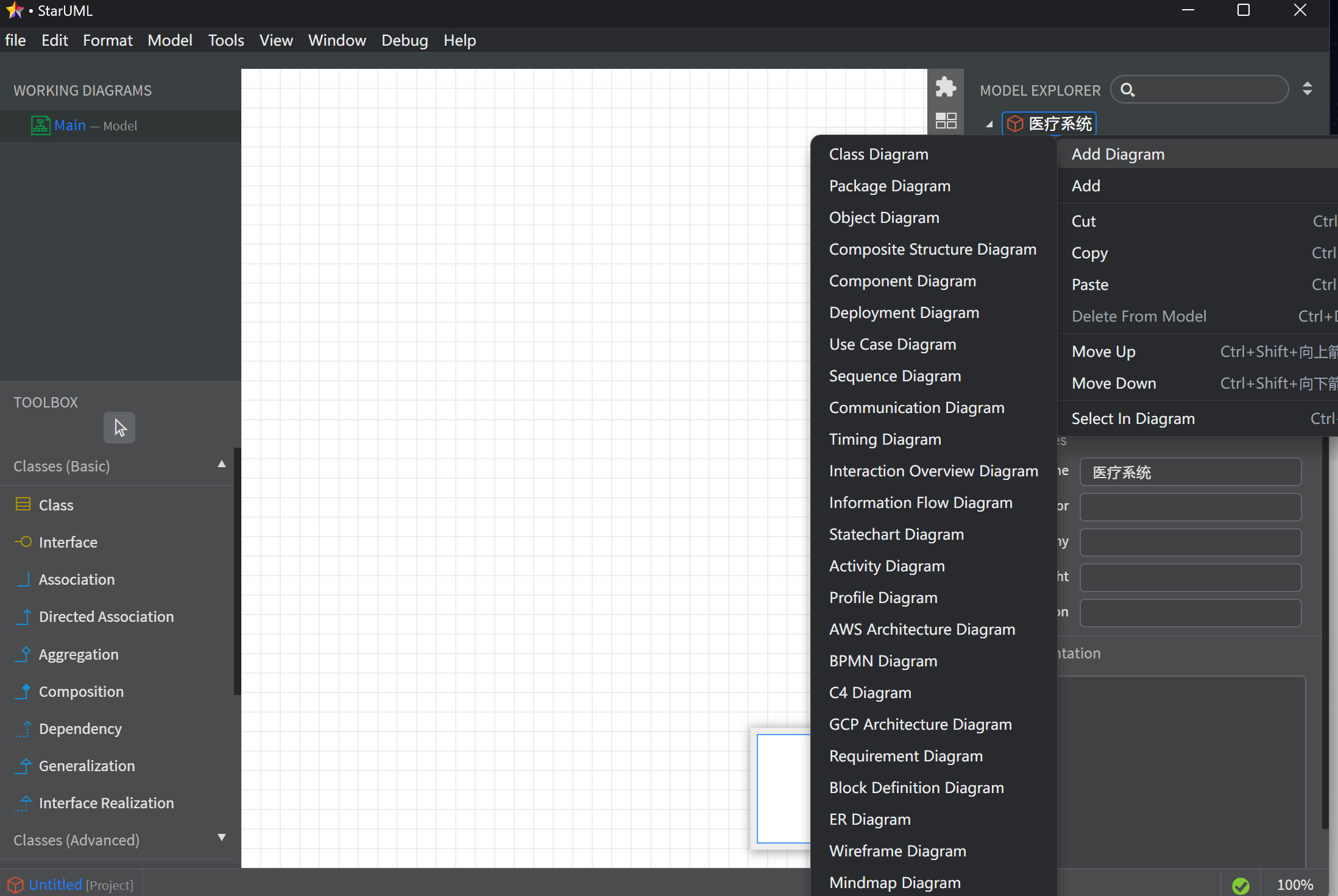

  2. 新建类图->Class Diagram

    uml15

  3. 画类图，创建一个Class，右键->Add->Attribute

    image-20240410152752446

  4. 添加属性->在右下角出现的属性进行编辑

    image-20240410153258815

  5. 添加方法->选中类，右键Add->Atrribute

    image-20240410153139634

  6. 填写方法的属性，右键方法->Add->Parameter

    image-20240410155209465

    右下角填写属性 visibility：public前面是➕，visibility：private前面是➖
